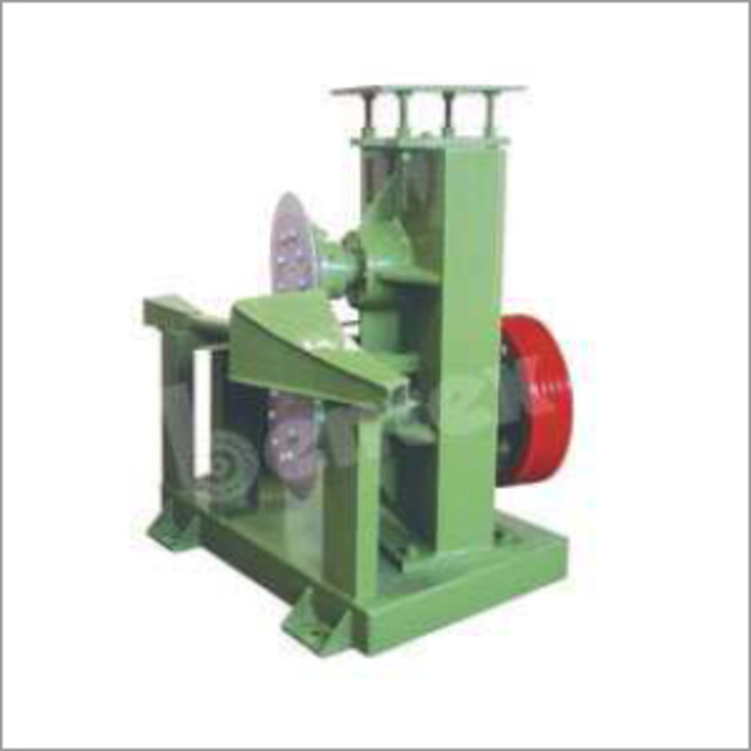

Fix Rotary Shearing Machines

Get a Price/Quote

Fix Rotary Shearing Machines Specification

Type
Fix Rotary Shearing Machine

Material
Mild Steel

Capacity
Up to 7 mm thickness sheet

Computerized
No

CNC Or Not
No

Automatic Grade
Semi Automatic

Control System
Manual Lever or Pneumatic

Cutting Size
Custom as per requirement

Cutting Thickness
Up to 7 mm

Cutting Width
Up to 1500 mm

Blade Material
Hardened High Carbon Steel

Voltage
440 V

Power
5 HP

Dimension (L*W*H)
Approx. 2400 x 800 x 1200 mm

Weight
1600 Kg (approx.)

Color
Industrial Blue / As per Requirement

About Fix Rotary Shearing Machines

We are a trader of Fix Rotary Shearing Machines.

With our main mission of customer satisfaction with superior quality Shearing and Cutting, Machines we always deliver items on time with the very competitive prices.

We Can Manufacture and Supply various sizes of Fix Rotary Shearing Machines (Front & End cutting)

Technical Specifications:

Uses	TMT (Front and End Cutting)
Body	M.S. Prime Plate Fabricated
Welding	MIG Welding Used For Machine Fabrication Dully Grind And Machined
Stress Relieve	Body of Machine Duly Stress Relieved
Shaft	EN-Series Forged Steel
Gears	EN-Series Forged Steel
Bearings	Imported Anti Friction Roller Bearing
Pulley	Graded Cast Iron
Blades	1 Set Fitted in Machine
Operation	Pneumatic Cylinder

Precision Cutting for Diverse Applications

The Fix Rotary Shearing Machine excels in delivering accurate and clean cuts for mild steel sheets up to 7 mm thick. Its blade clearance adjustment feature ensures optimal performance for varying material thicknesses, making it suitable for both cold and hot shearing applications. Ergonomic design elements and customizable cutting sizes meet the demands of various industries, supporting increased productivity and user safety.

Sturdy Construction and Reliable Operation

Built with a heavy duty welded frame, the machine is engineered for stability during high-intensity operations. The gear and flywheel drive mechanism, along with centralized manual lubrication, guarantees smooth and reliable performance with minimal maintenance. Mechanical safety guards are integrated to safeguard operators, further enhancing workplace safety.

FAQs of Fix Rotary Shearing Machines:

Q: How is blade clearance adjusted on this Fix Rotary Shearing Machine?

A: Blade clearance is manually adjusted, allowing users to set the ideal gap for different sheet thicknesses up to 7 mm. This ensures precise, burr-free cuts and prolongs blade life.

Q: What types of materials and products can I process with this machine?

A: The machine is suited for mild steel sheets, handling both cold and hot shearing applications. It is ideal for manufacturing processes requiring high cutting accuracy and consistent results.

Q: Where is this rotary shearing machine typically used?

A: It is commonly deployed in metal fabrication units, steel service centers, and industrial manufacturing facilities across India and worldwide, wherever precise sheet cutting up to 7 mm thickness is essential.

Q: When should I perform maintenance on the lubrication system?

A: Centralized manual lubrication should be carried out regularly, as recommended in the user manual, to ensure smooth operation and reduce component wear, especially during continuous or heavy-duty use.

Q: What benefits does the heavy duty welded construction provide?

A: The robust welded frame minimizes vibration and distortion during cutting, resulting in improved accuracy, reduced maintenance, and an extended service life for the machine.

Q: How does the control system operate this machine?

A: The machine can be operated via a manual lever or pneumatic system, enabling semi-automatic control. This offers flexibility for various operational preferences and production needs.
