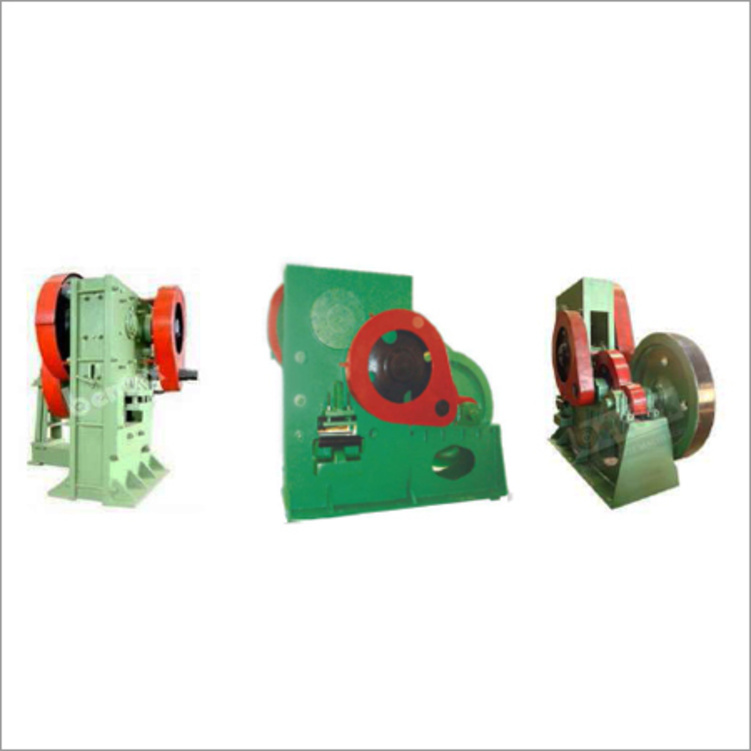

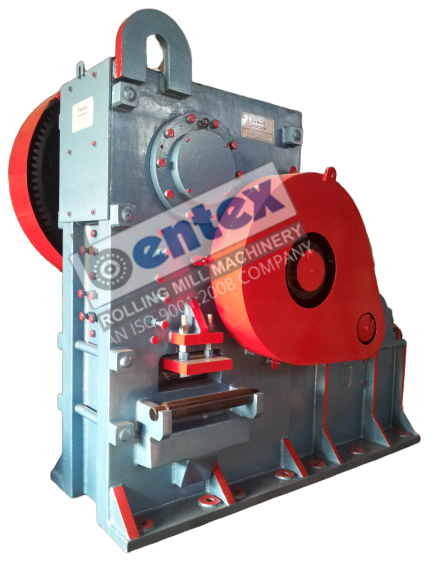

Billet Shearing Machines

Get a Price/Quote

Product Details:

Type Mechanical Shearing Machine
Material MS BILLET SHEARING
Computerized No
CNC Or Not No
Automatic Grade Semi-Automatic
Control System Human Machine Interface
Cutting Thickness UPTO 230 MM Millimeter (mm)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Billet Shearing Machines Product Specifications

Computerized No
Material MS BILLET SHEARING
Control System Human Machine Interface
Cutting Thickness UPTO 230 MM Millimeter (mm)
Automatic Grade Semi-Automatic
CNC Or Not No
Type Mechanical Shearing Machine

Billet Shearing Machines Trade Information

Payment Terms Letter of Credit (L/C) Telegraphic Transfer (T/T) Cheque
Delivery Time 2-5 Months
Sample Policy Contact us for information regarding our sample policy
Main Export Market(s) Australia North America Eastern Europe Western Europe Middle East South America Asia Central America Africa
Main Domestic Market All India
Certifications ISO 9001:2015

Product Description

We are engaged in manufacturing, exporting and supplying supreme quality Billet Shearing Machines that are manufactured by utilizing quality approved components sourced from honest and trustworthy vendors of the industry. These machines are widely used in engineering and construction industry for cutting billets in various sizes. These machines are made available in diverse technical specifications and can also be customized as per clients specific requirements. Our offered machines are highly cherished among our customers for their low power consumption and high functionality. Further, we provide these Billet Shearing Machines to our customers at highly competitive prices with no hassle.

Features:

Long service life
Optimum performance
Resistant against corrosion
Long functional life

Technical Specifications:

Uses	Billet Cutting up to 200x 200 mm
Specialty	Round Cutting of up to 225 mm
Body	M.S. Prime Plate Fabricated
Welding	MIG Welding Fully Grind and Machined
Stress Relieve	Body of Machine Duly Stress Relieved
Crank	EN-Series Forged Steel
Slide	Forged Steel
Bearings	Imported Anti Friction Roller Bearing
Gears and Pinion	EN-Series Forged Steel
Flywheel	Graded Cast Iron
Pulley	Graded Cast Iron
Bush	Bronze
Blades	1 Set Fitted in Machine
Operation	Without Clutch Mechanical Clutch
